CNC MACHINING, 3D-PRINTING, and CNC FABRICATION
of Sheet Metal & Extrusion Parts

Hydroform USA has (27) CNC Machine Centers Including:

  • (1)   5-Axis EDM Sinker

  • (2)  4-Axis Machining Centers

  • (9)  3-Axis Machining Centers

  • (1)   3-Axis Laser Cutter

  • (1)   CNC Lathe

  • (2) 6 Axis Robots

  • (7) 5-Axis Machining Centers

  • (2) 5 Axis 3-D Printers

  • (1)  5-Axis Water-Jet Cutter

  • (1)  5-Axis EDM

5-Axis Machining


PARPAS XS 5-AXIS GANTRY

max part size: X-236", Y-118", Z-59"

 24,000 RPM, Siemens 840D Control


(2) CMS ARES 5-AXIS GANTRY 5A-4

 max part size: X-189", Y-71", Z-47"

18,000 RPM spindle speed

CMS ARES (2) machines.jpg
We have (2) identical CMS, ARES model

SHODA STRATEGY 5 AXIS 5A-2

max part size: X-122", Y-60", Z-35"

18,000 RPM spindle speed


SHODA GANTRY 5 AXIS 5A-1

 max part size: X-122", Y-60", Z-47"

 18,000 RPM spindle speed

Parts - Machined 9-23-22 e.jpg

HAAS UMC-1000SS 5 AXIS

max part size: X-40", Y-25", Z-25"

12,000 RPM spindle speed

HAAS UMC 1000ss Action d.jpg
Machined Parts d.jpg

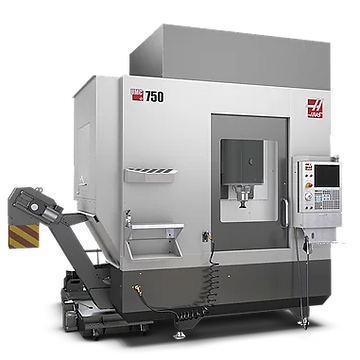

HAAS UMC-750 5 AXIS 5A-5

max part size: X-30",Y-20", Z-20"

 12,000 RPM spindle speed

Machined Parts b.jpg
Image 10-7-20 at 4.24 PM (2).jpg

4-Axis Machining

Modig Part 1.jpg
Long Extru Part 1.jpg
Modig 2.jpg

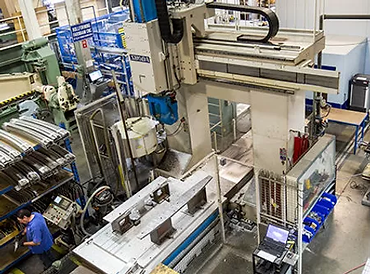

MODIG HHV 2, 4 AXIS

Extrusion/Bar feeding up to 6"x10" cross-section at Infinite lengths, 30,000 RPM.

Modig Action.jpg
Modig Part 3.jpg

Seat Tracks

Modig Action 2.jpg
Modig Action.jpg
Modig Part 2.jpg

The MODIG is built to efficiently & economically machine Longerons, Floor Beams, Seat Tracks, and small detail parts like Clips & Brackets. HHV means "Horizontal High Velocity with (2) Rotary Tables


HAAS VF-4SS with 4 AXIS ROTARY VMC-4

max part size: X-50", Y-20", Z-25"

10,000 RPM spindle speed

Machining Action-People 9-24-22 b.jpg
Parts - Machined 9-23-22 d.jpg
HAAS 4SS with Rotary Action 9-24-22 d.jpg

3-Axis Machining

Screen Shot 2021-02-22 at 1.51.45 PM.png

HAAS VF-10 3 AXIS VMC-6

max part size: X-120", Y-40", Z-30"

10,000 RPM spindle speed

HAAS VF-10 9-24-22 d.jpg
HAAS UMC 1000ss Action d.jpg
HAAS VF-10 9-24-22 e.jpg

HAAS VF-6  3 AXIS VMC-5

max part size: X-64", Y-32", Z-30"

10,000 RPM spindle speed

HAAS GR510 9-23-22 b.jpg
Machined Parts f.jpg
We have (2) identical HAAS, 4SS

HAAS VF-4SS  3 AXIS VMC-4

max part size: X-50", Y-20", Z-25"

10,000 RPM spindle speed

Machined Parts 9-24-22 a.jpg
HAAS 4SS Action 9-24-22 a.jpg

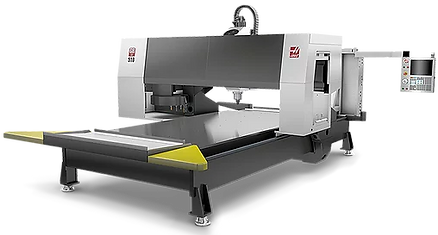

HAAS GR-510 3 AXIS GANTRY

max part size: X-121", Y-61", Z-12"

10,000 RPM spindle speed

HAAS GR510 9-23-22 b.jpg
HAAS GR510 9-23-22 e.jpg
Parts - Machined 9-23-22 b.jpg

HAAS GR-512 3 AXIS GANTRY G-2

max part size: X-145", Y-61", Z-12"

10,000 RPM spindle speed

Image 10-12-20 at 1.31 PM (1).jpg
People - CNC i.jpg

HAAS GR-712 3 AXIS GANTRY

max part size: X-145", Y-85", Z-16"

10,000 RPM spindle speed

HAAS GR510 9-23-22 a.jpg
haas GR-712 action a.jpg

CMS MBB CNC FLAT PATTERN ROUTER max stack size: X-300", Y-60",

1/2" sheet metal stacks.

CMS MBB Router b.jpg
IMG_1644.HEIC
Image 11-3-20 at 4.15 PM.jpeg

CMS AVANT CNC FLAT PATTERN ROUTER

max stack size: X-220", Y-60"

1/2" sheet metal stacks.

2010 cnc 2.JPG
Image 10-15-20 at 8.41 AM.jpg

6-Axis Robots


(2) FANUC M-710 IC50 ROBOTIC Drilling & Routing Centers

 max part size: X-72", Y-72", Z-72"

24,000 RPM spindle speed

Parts - DeIcer  9-26-22 b.jpg
Robot Action-People pic b.jpg
We have (2) Fanuc M-710 IC50 Robots

5-Axis 3-D Printing

CMC KREATOR-LSAM 3DPrinter_edited.jpg

CMS Kreator 5-AXIS 3D Printer & Machining Center

 max part size: X-172.5", Y-60", Z-47"

197" p/minute print speed, and 24,000 RPM machining spindle speed

Carbon Fiber reinforced Polyamide or Nylon PA 6 + Carbon Fiber

3-D Print Stretchblock - rev.jpg
3D Print Stretch Block 10.jpg
Tooling 9-24-22 a_edited_edited.jpg

Stratasys FORTUS 450mc 5-AXIS 3D Printer

 max part size: X-16", Y-14", Z-16"

Stretch Form Block

Stretch Form Block

Vacuum Fixture

3D Printed Part.jpg
People - CNC f (2).jpg

3-Axis Laser Cutting

Laser ML3015LVPlus 9-30-22 c.webp

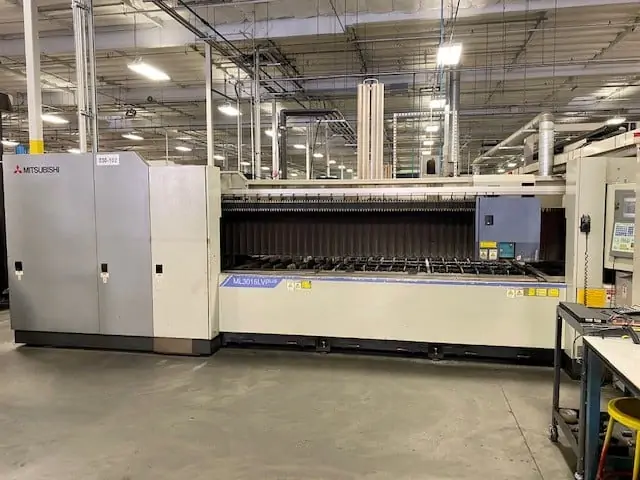

Mitsubishi ML3015 LVPlus

max part size: X-122", Y-61", Z-3.5"

4,000 Watt, 1,180 Inch per Minute

Laser Action 9-24-22 c.jpg
People - CNC c.jpg
Laser Action 9-24-22 b.jpg

5-Axis EDM Cutting & Sinking

EDM RA90 b2.jpg

Mitsubishi Wire EDM RA90 5 AXIS

max part size: X-34", Y-30", Z-6"

EDM Action a.jpg
EDM Part b.jpg
EDM Action b.jpg
f87d360ccf3e4aed9bfd892ac7147ce2_edited_

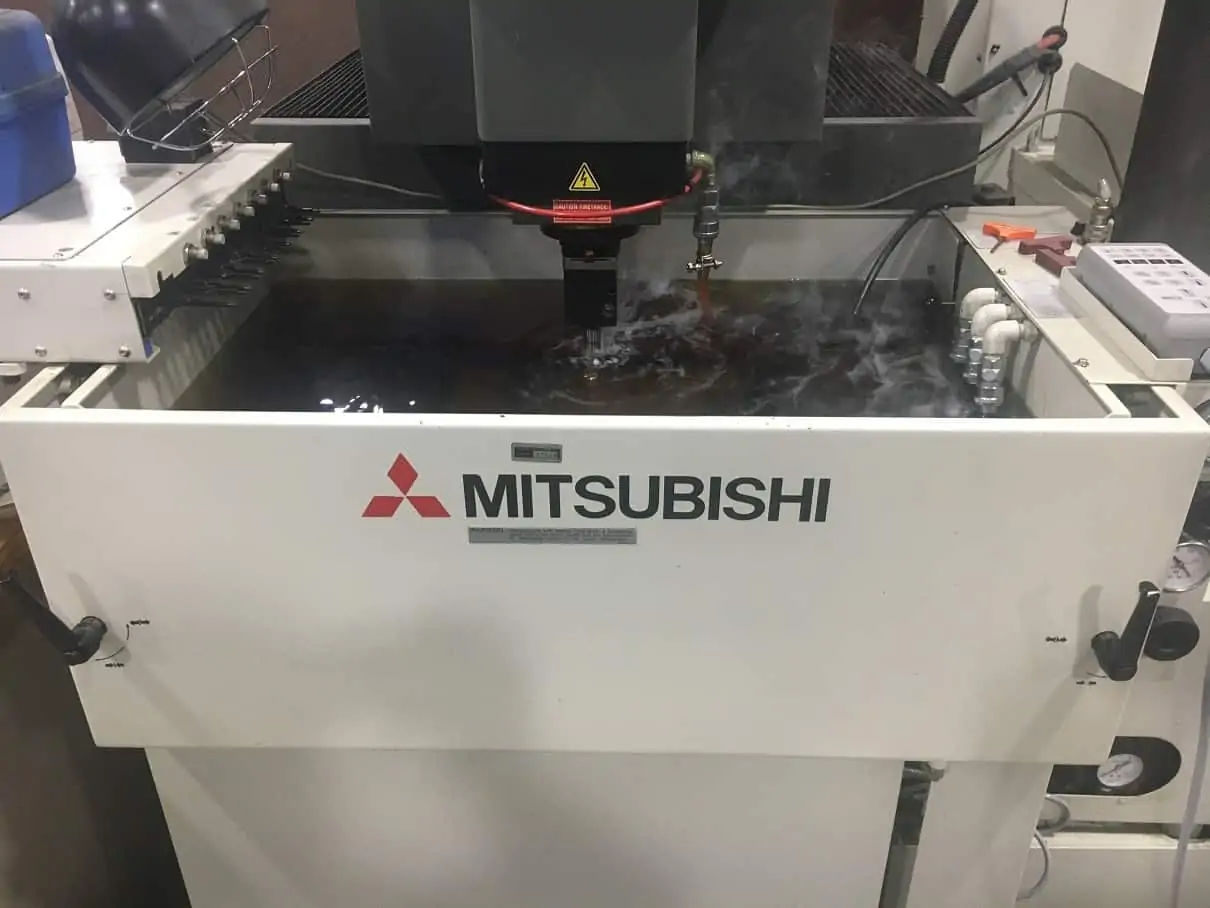

Mitsubishi Sinker EDM EA8  5 AXIS

max part size: X-12", Y-10", Z-10"

EDM Sinker EX30 g.jpg
EDM Sinker Part b.jpg

CNC Lathe

Lathe Chevalier FCL-1860 B (2).jpg

Mitsubishi Sinker EDM EX30  5 AXIS

max part size: X-46", Y-30", Z-14"

Tooling 9-9-22 a.jpg
Lathe Parts a.jpg
Lathe Parts b.jpg

5-Axis Water-Jet Cutter

Water Jet 1.jpg

FLOW MACH-400 5 AXIS Water Jet

max part size: X-122, Y-71", Z-24"

Water Jet Part b.jpg
Water Jet Action a.jpg
Water Jet a.jpg
